What is a Countersink Drill Bit?

The countersink drill bits are tools specially used for drilling countersink holes. Countersinking refers to extending a larger diameter groove at the opening of the hole so that the screw or bolt head can be embedded flatly into the surface of the workpiece. It is usually used in woodworking, metal processing and plastic processing.

What does a countersink drill bit look like?

From the diagram of the countersink drill bit on the right, we can see several parts of the countersink drill bit.

  • Center drill: The diameter of the center drill determines the diameter of the hole.
  • Counterbore Taper: The angle of the countersink drill bit plays a vital role in determining how well the screw head will fit into the countersink, thereby affecting the overall appearance, strength, and durability of the assembly.
  • The diameter of the countersunk hole: The diameter of the countersunk hole ensures the appearance of the screw head and surface.
  • Shank: The shank is the cylindrical part of the drill bit that fits into the chuck of a drill. It is usually the longest part of the bit and can come in various shapes, such as round, hex, or quick-change.

How Countersink Drill Bits Differ from Standard Drill Bits ?

Countersunk drill bits are different from standard drill bits in design and structure, usage scenarios, operation methods and drilling effects.

1. Design and Structure

Countersink Drill Bit:

  • Main Components: A countersink drill bit typically consists of a central pilot drill bit and an outer countersink cutting edge. The pilot drill bit creates the initial hole, while the outer cutting edge enlarges the top part of the hole to accommodate the screw head.
  • Shape: The cutting edge of a countersink drill bit is typically conical or tapered, designed to create a beveled hole opening. This allows the screw head to sit flush with or below the surface of the material.
  • Angle: Countersink bits come in various angles, commonly 82 degrees, 90 degrees, and 100 degrees, matching the angle of the screw heads.

Standard Drill Bit:

  • Main Components: A standard drill bit usually has a single spiral cutting edge designed to drill straight through materials.
  • Shape: Standard drill bits have a helical shape that helps to remove material chips as the bit drills through.
  • Angle: The point angle of standard drill bits is typically 118 degrees or 135 degrees, suitable for general drilling tasks.
Countersunk drill bits vs standard drill bits
Countersunk drill bits vs standard drill bits

2. Purpose

Countersink Drill Bit:

  • Primary Use: Countersink bits are used to create a countersink hole, allowing screw heads to sit flush or below the material’s surface. This is important for projects where a smooth finish or hidden screws are desired, such as in furniture making, cabinetry, and metalworking.
  • Application Scenarios: Commonly used in detailed assembly and aesthetic projects like furniture assembly, enclosure construction, and electronic device manufacturing.

Standard Drill Bit:

  • Primary Use: Standard drill bits are designed to drill through materials, creating holes for bolts, screws, or pins.
  • Application Scenarios: Used in a wide range of drilling tasks across various materials, including wood, metal, plastic, and composites.
Countersunk drill bits vs standard drill bits
Countersunk drill bits vs standard drill bits

3. Operation

Countersink Drill Bits:

  • Multi-Step Drilling: Countersink bits often work in two steps: first, the pilot bit drills a hole, and then the outer cutting edge enlarges the top of the hole to create the countersink.
  • Precision Control: These bits provide better control over depth and angle, ensuring the screw head is properly embedded in the material.

Standard Drill Bit:

  • Single-Step Drilling: Standard drill bits create a complete through-hole in one continuous drilling motion.
  • Versatility: Suitable for most general drilling needs but requires additional tools to create countersinks.
drill bits for countersink
drill bits for countersink

4. Effect

Countersink Drill Bit:

  • Aesthetics: Allows screw heads to sit flush with or below the surface, providing a neat and professional finish.
  • Functionality: Ensures screws are securely fastened without affecting the material’s surface integrity.

Standard Drill Bit:

  • Practicality: Efficiently drills through materials but doesn’t address the issue of embedding screw heads.
  • Multi-Purpose: Ideal for general-purpose drilling but requires additional countersinking tools for specific tasks.

By comparing the differences between countersink drill bits and standard drill bits. We learned that a countersink drill bit can create a tapered hole that allows the screw head to be flush with or below the surface.

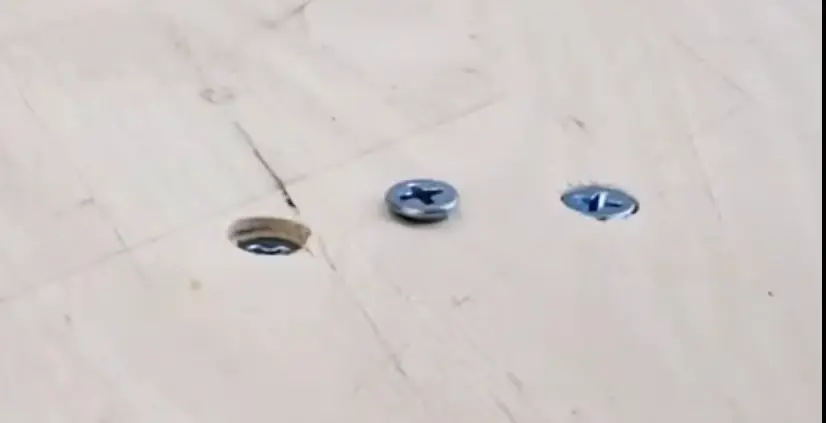

what is a countersink drill bit used for

A countersink drill bit is primarily used to create a conical hole that allows the head of a screw or bolt to sit flush with or below the surface of the material. This type of drill bit is particularly useful in various applications where a smooth, finished appearance is important, and where the screw heads need to be concealed or flush with the surface.

what is a countersink drill bit used for
what is a countersink drill bit used for

How to use a countersink drill bit

Two ways to drill holes with countersink drilling

Two-ways-to-drill-holes-with-countersink-drilling
Two-ways-to-drill-holes-with-countersink-drilling

use a countersink drill bit method 1:

Keep the screw head flush with the surface of the material .

1.Prepare Your Workspace

  • Wear safety glasses.
  • Ensure the work area is clean and well-lit.

2.Secure the Workpiece

  • Use clamps to hold the workpiece securely.

3.Mark the Drilling Location

  • Measure and mark the spot where you want to drill.

4.Drill the Pilot Hole

  • Use a regular drill bit to make a pilot hole at the marked spot.

5.Attach the Countersink Bit

  • Choose the correct countersink bit for your screw size.
  • Attach it to your drill.

6.Drill the Countersink Hole

  • Align the countersink bit with the pilot hole.
  • Start drilling at a low speed and increase as needed.
  • Drill until the hole is deep enough for the screw head to sit flush or below the surface.

7.Check the Fit

  • Insert the screw to ensure it sits properly.

8.Clean Up

  • Remove any debris from the hole.
Tips
  • Use lower speeds for harder materials.
  • Test on scrap material if unsure about the depth or size.
  • Lubricate the bit when drilling into metal to reduce heat and friction.

use a countersink drill bit method 2:

How to Use a Countersink Drill Bit to Make Hidden Screws

How-to-Use-a-Countersink-Drill-Bit-to-Make-Hidden-Screws
How-to-Use-a-Countersink-Drill-Bit-to-Make-Hidden-Screws
Steps to Create Hidden Screws:

1.Prepare Your Workspace

  • Wear safety glasses to protect your eyes.
  • Ensure your workspace is clean, well-lit, and free of obstructions.

2.Secure the Workpiece

  • Use clamps to hold the workpiece securely to prevent movement while drilling.

3.Mark the Drilling Location

  • Measure and mark the spots where you want to place the screws.

4.Drill Pilot Holes

  • Use a regular drill bit to drill pilot holes at the marked spots. These holes guide the screws and prevent the wood from splitting.

5.Attach the Countersink Bit

  • Select the appropriate countersink bit for your screw size and attach it to your drill.

6.Drill the Countersink Holes

  • Align the countersink bit with the pilot holes.
  • Drill slowly to create a countersink hole where the screw head will sit below the surface.
  • Ensure the hole is deep enough to allow the screw head to be hidden but not too deep to weaken the material.

7.Insert and Tighten the Screws

  • Place the screws into the countersunk holes and tighten them until the heads are flush with or slightly below the surface of the material.

8.Fill the Holes

  • If using wood filler: Apply wood filler over the screw heads with a putty knife. Allow it to dry, then sand it smooth to match the surface.
  • If using wooden plugs: Insert the wooden plugs into the countersunk holes over the screw heads. Use glue if necessary, then sand them flush with the surface once the glue is dry.

9.Finish the Surface

  • Sand the filled holes smooth to blend them with the surrounding material.
  • Optionally, apply paint, stain, or varnish to finish the surface as desired.
Tips
  • Choose screws that are appropriate for the material and the thickness of the workpiece.
  • Use a countersink bit that matches the size of the screw heads for a proper fit.
  • Practice on a scrap piece of wood to get a feel for the countersink depth and technique.

By following these steps, you can achieve a clean, professional look with hidden screws, enhancing the aesthetics and functionality of your project.

What materials are countersink drills suitable for drilling?

Countersink drill bits are primarily used for wood, but they are also suitable for other materials like metal and plastic. Different materials require specific types of countersink drill bits and drilling techniques.

Countersink drill bits for wood

  • Characteristics: Wood is softer and easier to drill.
  • Countersink Drill Bit: Standard countersink drill bits work well for wood. They typically have larger flutes to quickly remove wood chips.

Countersink drill bits for Metal

  • Characteristics: Metal is harder than wood and requires more durable drill bits.
  • Countersink Drill Bit: Countersink drill bits for metal are usually made from high-speed steel (HSS) or carbide. These materials resist high temperatures and wear, making them suitable for drilling metal.
  • Technique: When drilling metal, it’s advisable to use a lubricant (such as cutting oil) to reduce friction and heat buildup.

Countersink drill bits for Plastic

  • Characteristics: Plastic is soft but can easily generate heat during drilling, causing melting or deformation.
  • Countersink Drill Bit: Drill bits for plastic are typically very sharp and designed to minimize friction and heat.
  • Technique: When drilling plastic, use a lower speed and make periodic stops to prevent overheating.

Choosing and Using Countersink Drill Bits

  • Material: Choose a countersink drill bit that matches the material you’re working with. For wood, standard steel bits are sufficient; for metal and harder materials, use HSS or carbide bits.
  • Speed: Different materials require different drilling speeds. Wood can be drilled at higher speeds, while metal and plastic should be drilled at lower speeds to reduce heat buildup.
  • Lubrication: Using a lubricant when drilling metal helps extend the drill bit’s life and improves the drilling process.

Countersink drill bits are versatile tools suitable for wood, metal, and plastic. The key is to choose the right material and design for the drill bit and adjust your drilling technique based on the material. By selecting and using countersink drill bits correctly, you can achieve high-quality countersinks in a variety of materials.

Conclusion

Countersink drill bits are versatile tools essential for creating smooth, flush finishes in wood, metal, and plastic. Understanding the different types of countersink drill bits, their specific applications, and the appropriate techniques for each material will help you achieve professional results in your projects. Whether you’re working on a woodworking masterpiece, metal fabrication, or plastic assembly, choosing the right countersink drill bit and using it correctly ensures precision and durability in your work. With this comprehensive guide, you’re now equipped to make informed decisions and enhance the quality of your drilling tasks.
